High Pressure Globe Valve
    发布时间: 2019-06-05 09:07

BOV VALVE can provide valve selection according to customer's different working conditions.

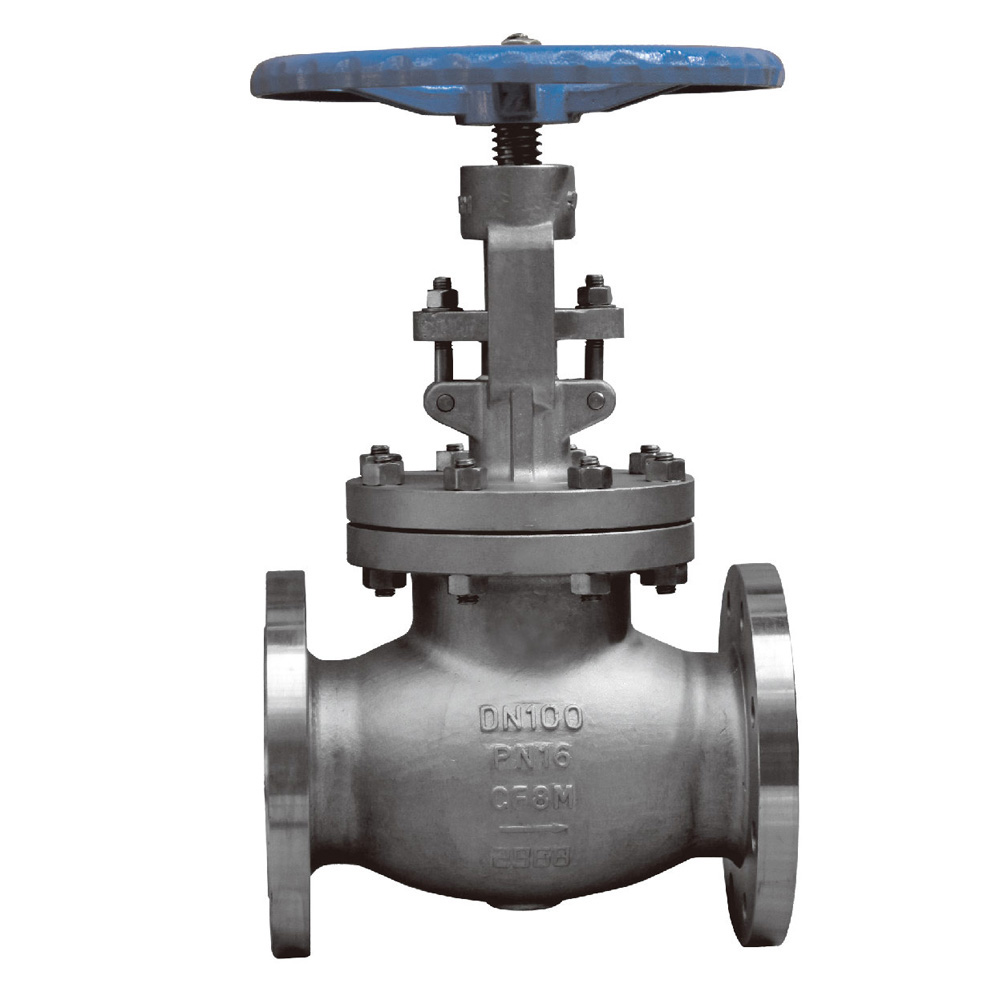

High Pressure Globe Valve
  • CLASS 600~2500 Pressure Sealed Globe Valve
  • OS&Y,Rising stem,Plug Disc，Pressure sealing Bonnet,Threaded or welded seating，
  • Material:ASTM A216 WCB,A217 WC6,A351CF8,A351CF8M,A351 CF3,A351 CF3M,A351 CN7M
  • Standards compliance
  • Design and Manufacture: ANSI B16.34,BS1873
  • Face to face(end to end): ANSI B16.10
  • Flanged connection: ANSI B16.5
  • Butt welded end: ANSI B16.25
  • Test and inspection: API598.
  • A.Back up ring: Absorbs thrust applied by internal pressure
  • B.Thrust ring: Protects the soft metallic gasket from deformation
  • C.Gasket: Unique angular design provides superior sealing
